Development Kit
ZT Innovations created a three phase inverter focused on debugging motor control applications. Some of the great features of this kit are its ability to protect itself during overcurrent faults, an on-board isolated debugger, and the ability to be able to power the control portion of the inverter without needing full motor voltage. The development kit has the following specifications:
- Contains ZT Innovations sensorless motor control software libraries

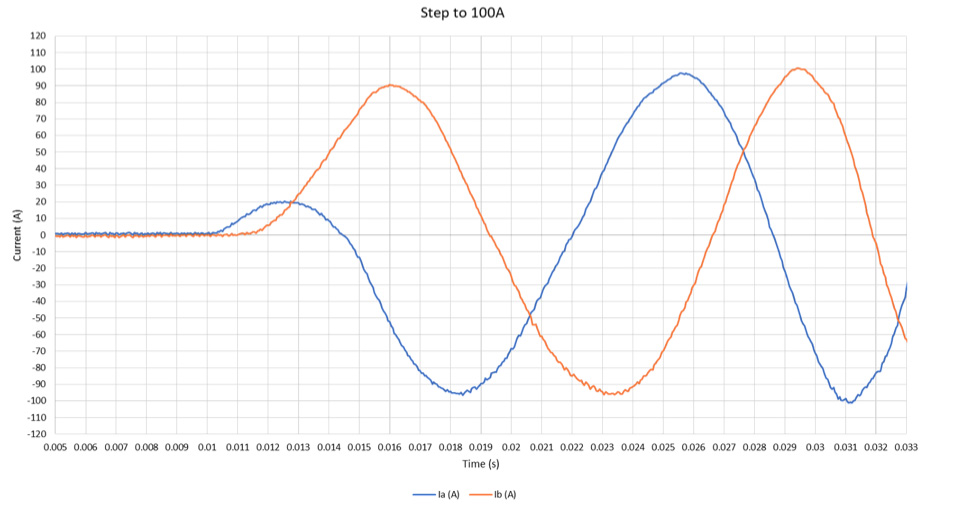

- 100A phase peak amperage
- Hardware trip current protection on each phase
- Up to 100V DC bus voltage
- Brake resistor circuit
- Texas Instruments F280049 microcontroller
- 256kb Flash
- 100 MHz
- 32bit floating point
- On board xds100v2 debugger
- Galvanically Isolated from the controller
- CAN with transceiver
- SPI
- UART
- Hall sensor input with voltage level shift
- Quadrature encoder input with voltage level shift
- 15V external supply used to power controller
- Gives the option to run the drive at lower voltage during debugging
